Product Details
＋
Description

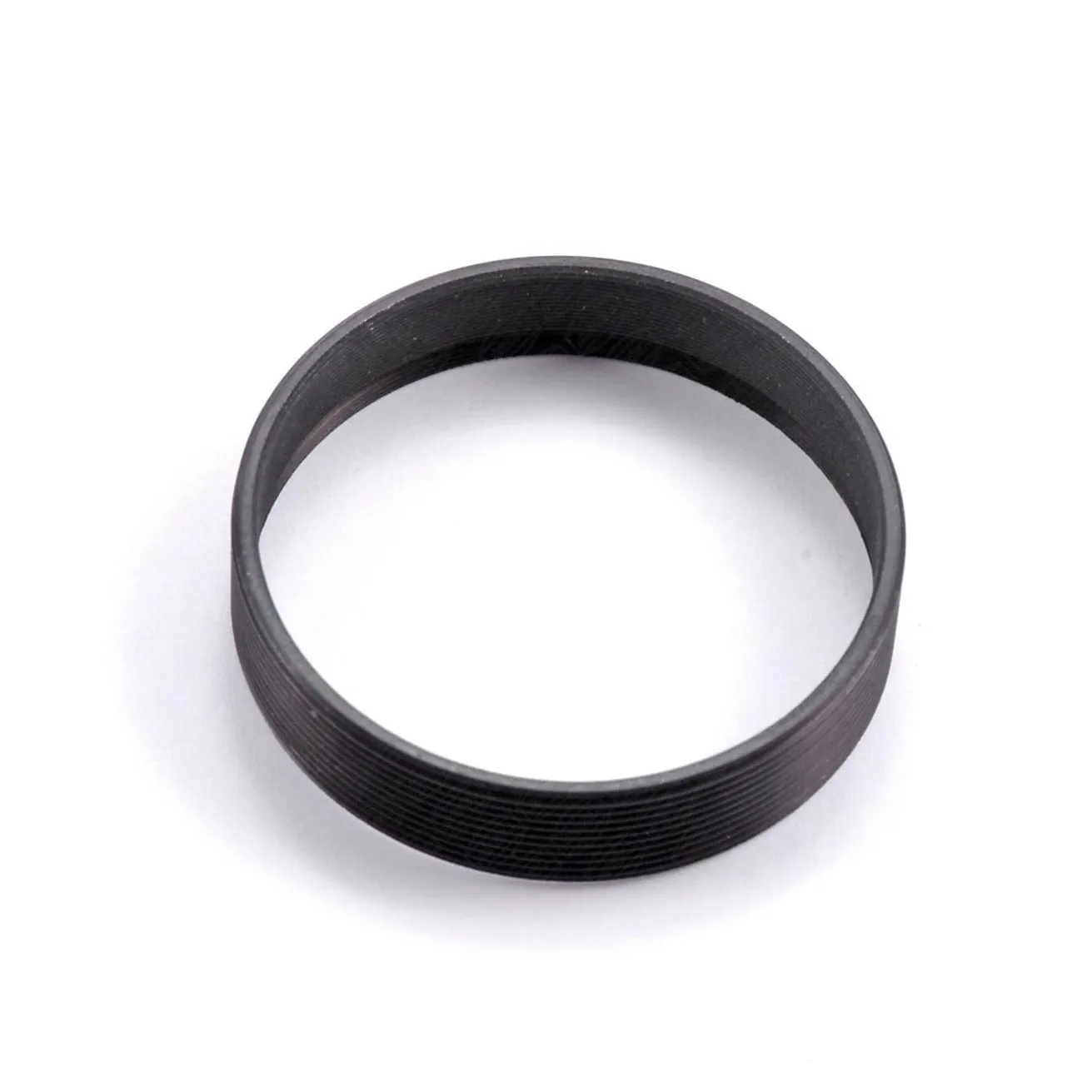

- Converts 2" female into 2" male thread
- Internal M48 Filter thread for 2" filter
- Can be used to connect Baader Hyperion Mark III Zoom directly to a Baader Star Diagnol gaining adfitional backfocus by swapping ClickLock-clamp for this adaptor.

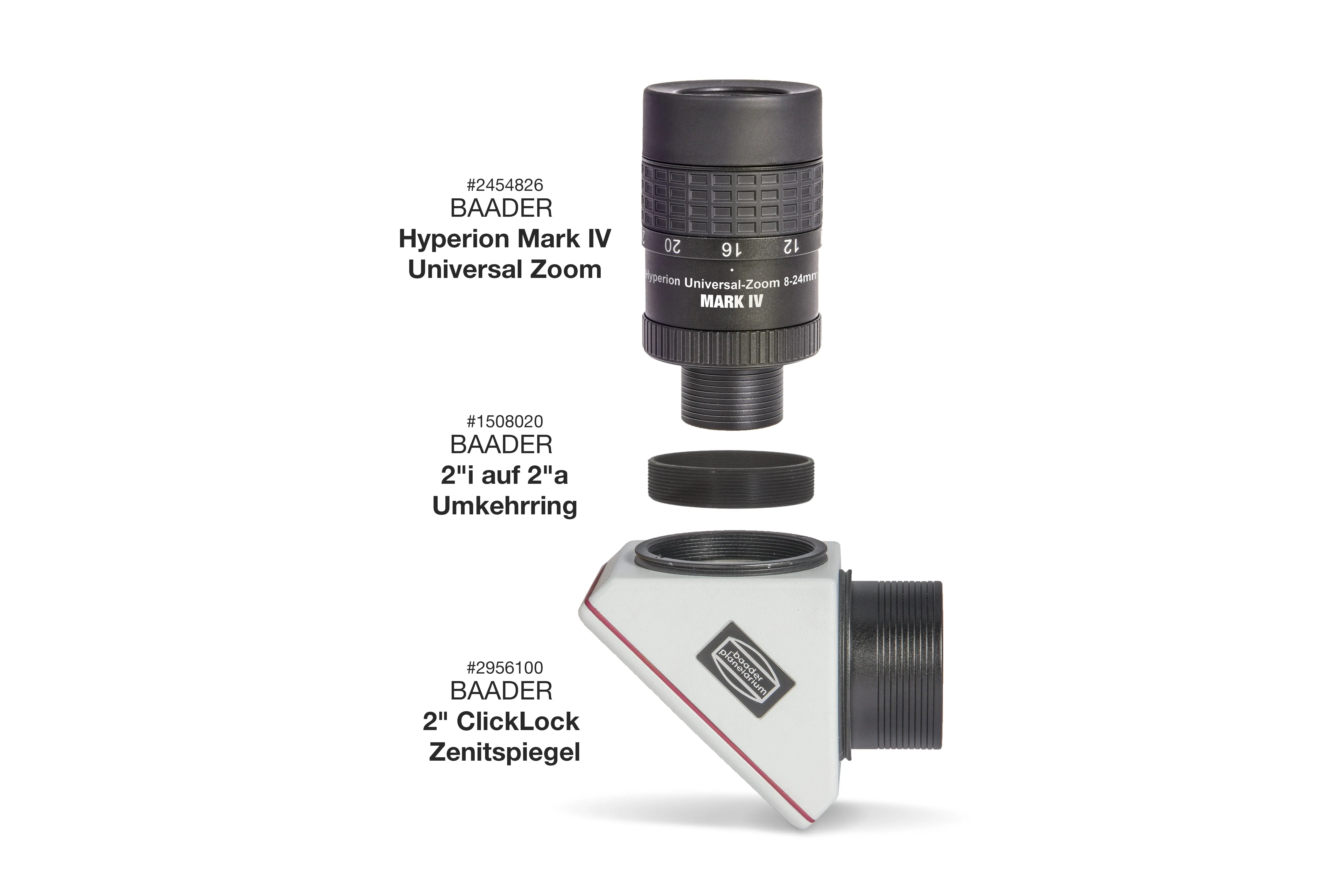

2"/2" Inverter Ring Application example
Short information (and GIF-Animation) on how to mount the Mark III Zoom directly onto any of our 2" Mirror diagonals equipped with a ClickLock-clamp. In case of insufficient backfocus or for permanent attachment onto the telescope (especially suited for public observatories), you can thread the Hyperion Zoom DIRECTLY onto any 2" SC/HD (Celestron-standard) telescope thread (were the Visual-Back fastens usually), or – in case of the Baader 2" ClickLock star diagonal – you can thread the Zoom directly onto the body of the Star Diagonal itself (gaining 47mm in backfocus) – by removing the 2" ClickLock-clamp and adding the Baader ring 2" inner to 2"outer.
Specifications
| MANUFACTURER | Baader Planetarium |
|---|---|
| SKU (#) | 1508020 |
| EAN CODE | 4047825016300 |
| WEIGHT (NETTO) | 0.014 |
| WIDTH (MM) | 12 |
| USAGE | changes a 2" inner thread in 2" outer thread |
| INNER DIAMETER / CLEAR APERTURE (MM) | 46 |
| OUTER DIAMETER | 50,8 (2") |
| OUTER CONNECTION (LENS SIDED) | Thread, 2" (50,8mm) |
| OUTER CONNECTION (EYEPIECE/-CAMERA-SIDED) | Thread, 2" (50,8mm) |
| COMPATIBLE BRANDS | UNC, Baader Planetarium, Celestron |
| TYPE OF ADAPTER | Switcher ring |
