Features:

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
• Can be either used built-in or independent with clip-on strain-relief
• The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
• one4all interface enables different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee

Typical applications

• Cove lighting, facade accent lighting, ceiling integration

Technical details

• 24v, 18w
• Small cross section
• Push terminals for simple wiring

Interfaces

• one4all (DALI, DSI, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals

System solution

• Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
• Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
• In connection with Flex accessories wire to PCB plug
• Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly

Specifications:

• Rated supply voltage: 220 – 240v
• AC voltage range: 198 – 264v
• DC voltage range: 176 – 280v
• Mains frequency: 0 / 50 / 60 Hz
• Overvoltage protection: 320v AC, 48 h
• Typ. rated current (at 230 V, 50 Hz, full load) (1): 105 mA
• Typ. current (220 V, 0 Hz, full load, 15 % dimming level): 24 mA
• Leakage current (at 230 V, 50 Hz, full load) (1): < 0.5 mA
• Typ. input current in no-load operation: < 20 mA
• In-rush current (peak / duration): 10.8 A / 225 µs
• Max. input power: 22w
• Typ. power consumption on stand-by: < 0.5 W
• Typ. input power in no-load operation: < 2.5 W
• Typ. efficiency (at 230 V, 50 Hz, full load): 84 %
• λ (at 230 V, 50 Hz, full load) (1): 0.95
• THD (at 230 V, 50 Hz, full load) (1): < 8 %
• Starting time (at 230 V, 50 Hz, full load) (2): < 0.65 s
• Starting time (DC mode) (2): < 0.32 s
• Switchover time (AC/DC): < 0.32 s
• Turn off time (at 230 V, 50 Hz, full load): < 0.05 s
• Output voltage tolerance: ± 1 V
• Output LF voltage ripple (< 120 Hz): ± 5 %
• Output P_ST_LM (at full load): ≤ 1
• Output SVM (at full load): ≤ 0.4
• Max. output voltage (U-OUT): 60v
• Dimming range: 1 – 100 %
• PWM frequency: ~ 1000 Hz
• Mains surge capability (between L - N): 1 kV
• Mains surge capability (between L/N - PE): 2 kV
• IP Rating: IP20

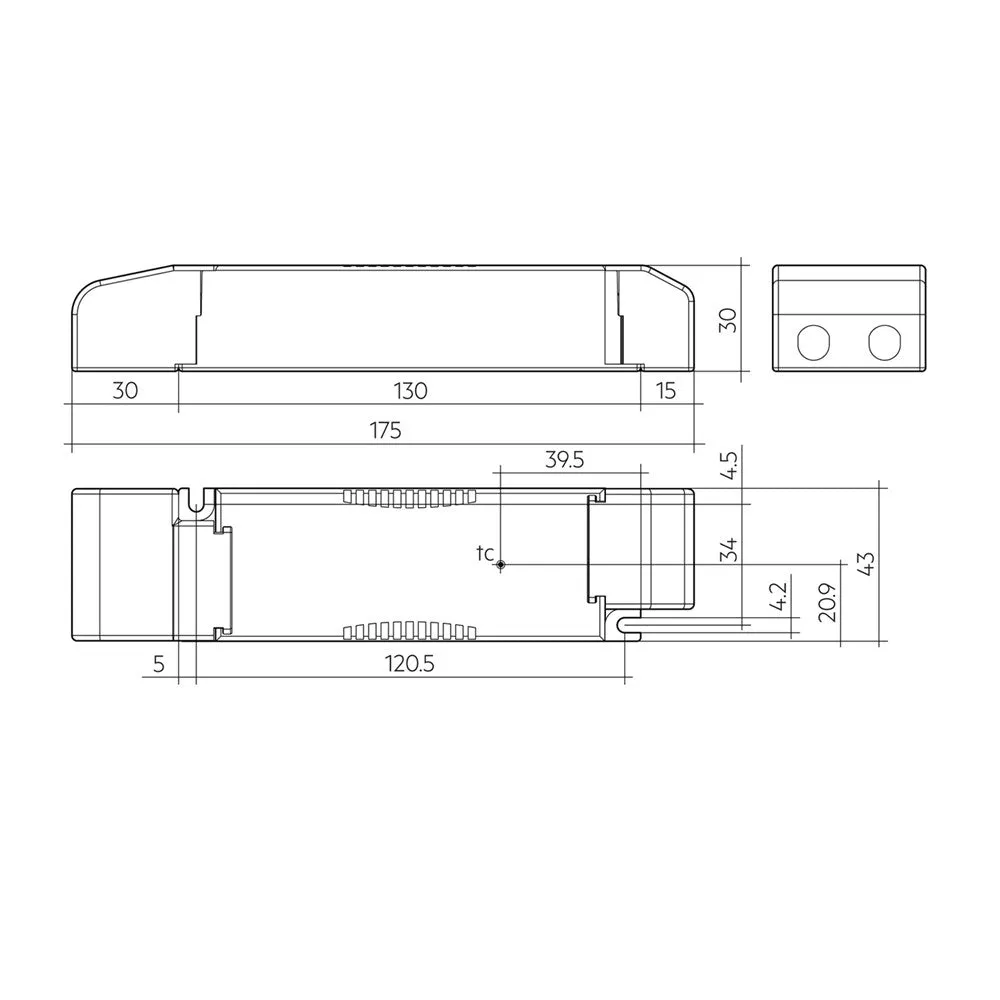

Dimensions:

• Length: 130mm
• Width: 43mm
• Height: 30mm
